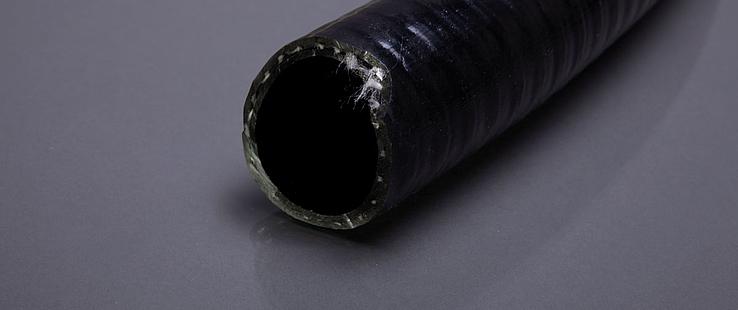

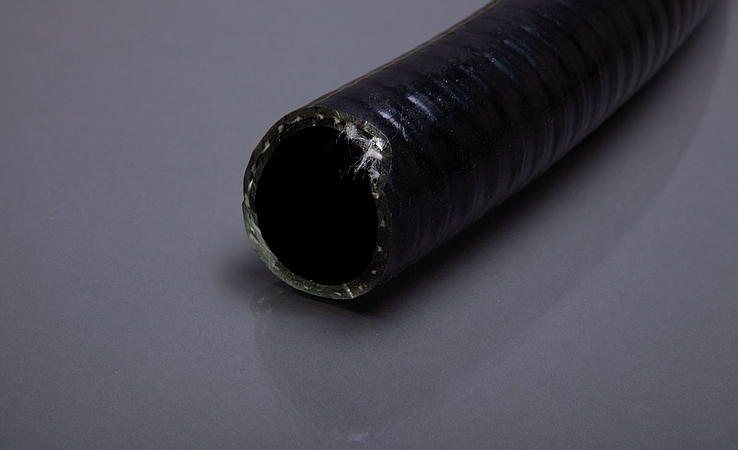

Flexacier OIL-Press 272
Imprint
- with imprint
Durability
- refer to Soft-PVC oil resistant
Colour
- black
Food approval
- No
REACH
- conformity to 1907/2006/EC
RoHS
- conformity to RoHs
Spiral
- Steel with yarn reinforcement
Material
- PVC/NBR oil resistant
_empty_
- 272.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
Flexacier OIL-Press 272
| Nr. | Inside Diameter in mm | Outside Diameter in mm | Wall Thickness | Bending Radius | Working Pressure bar | Vacuum mmH2O | Length in m |
|---|---|---|---|---|---|---|---|
| 272 025 0600 | 25 | 35 | 5 | 60 | 10 | 0,88 | 60 |
| 272 032 0400 | 32 | 42 | 5 | 90 | 10 | 0,88 | 60 |
| 272 038 0400 | 38 | 50,5 | 6,3 | 120 | 10 | 0,88 | 40 |
| 272 040 0400 | 40 | 52,5 | 6,25 | 125 | 10 | 0,88 | 40 |
| 272 050 0400 | 50 | 62,5 | 6,25 | 145 | 8 | 0,88 | 40 |
