2/3 Verschraubung Swiss
- Brass and conduit fitting programme specifically for the Swiss market.
- Applications: extra solid versions especially for the Swiss market
Seal
- NBR
Material
- Brass
_empty_

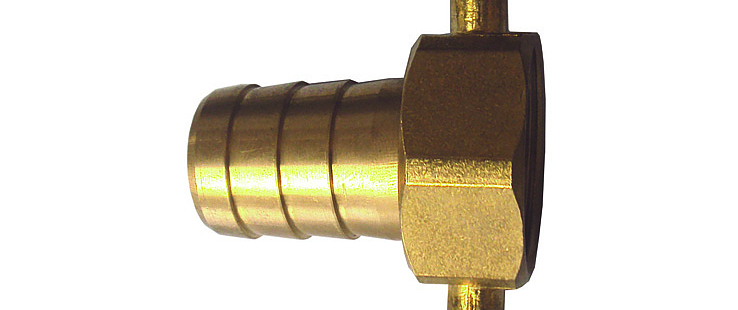

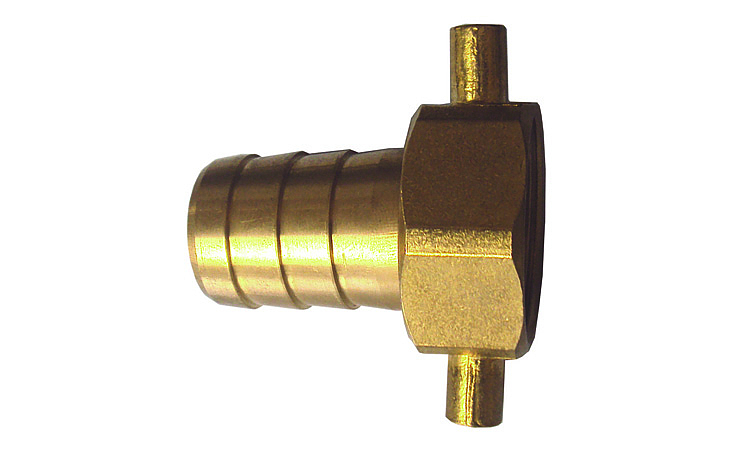

- 115000.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
2/3 Verschraubung Swiss
| Nr. | For Hose in mm | For Hoses in inch | Union Nut in mm | Union Nut in inch | Packing Unit |
|---|---|---|---|---|---|
| 115000 | 13 | 1/2" | 19,17 | 1/2" | 10 |
| 115002 | 13 | 1/2" | 24,66 | 3/4" | 10 |
| 115005 | 16 | 5/8" | 30,93 | 1" | 10 |
| 115003 | 16 | 5/8" | 24,66 | 3/4" | 10 |
| 115001 | 16 | 5/8" | 19,17 | 1/2" | 10 |
| 115004 | 19 | 3/4" | 24,66 | 3/4" | 10 |
| 115006 | 19 | 3/4" | 30,93 | 1" | 10 |
| 115007 | 25 | 1" | 30,93 | 1" | 10 |
